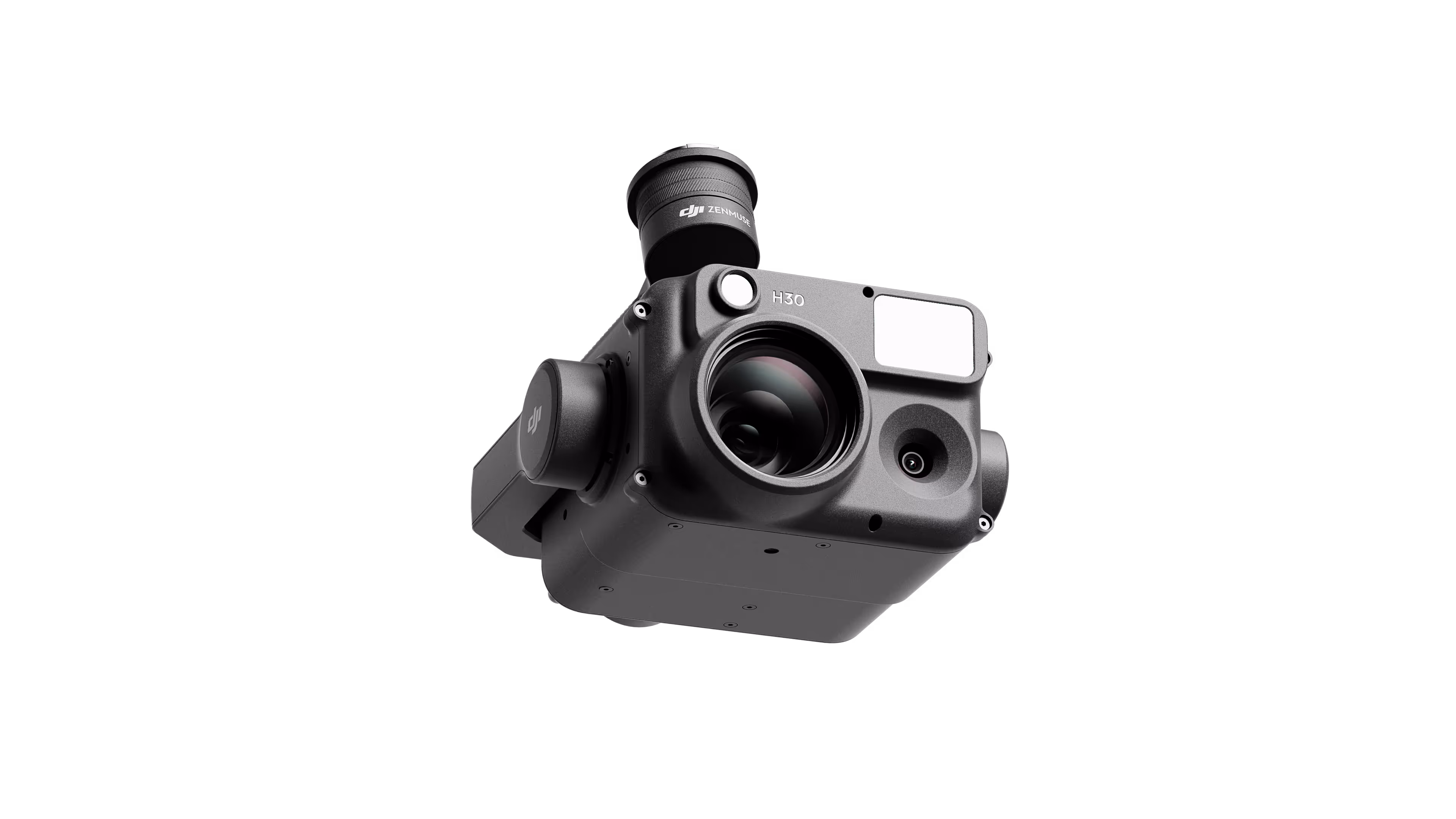

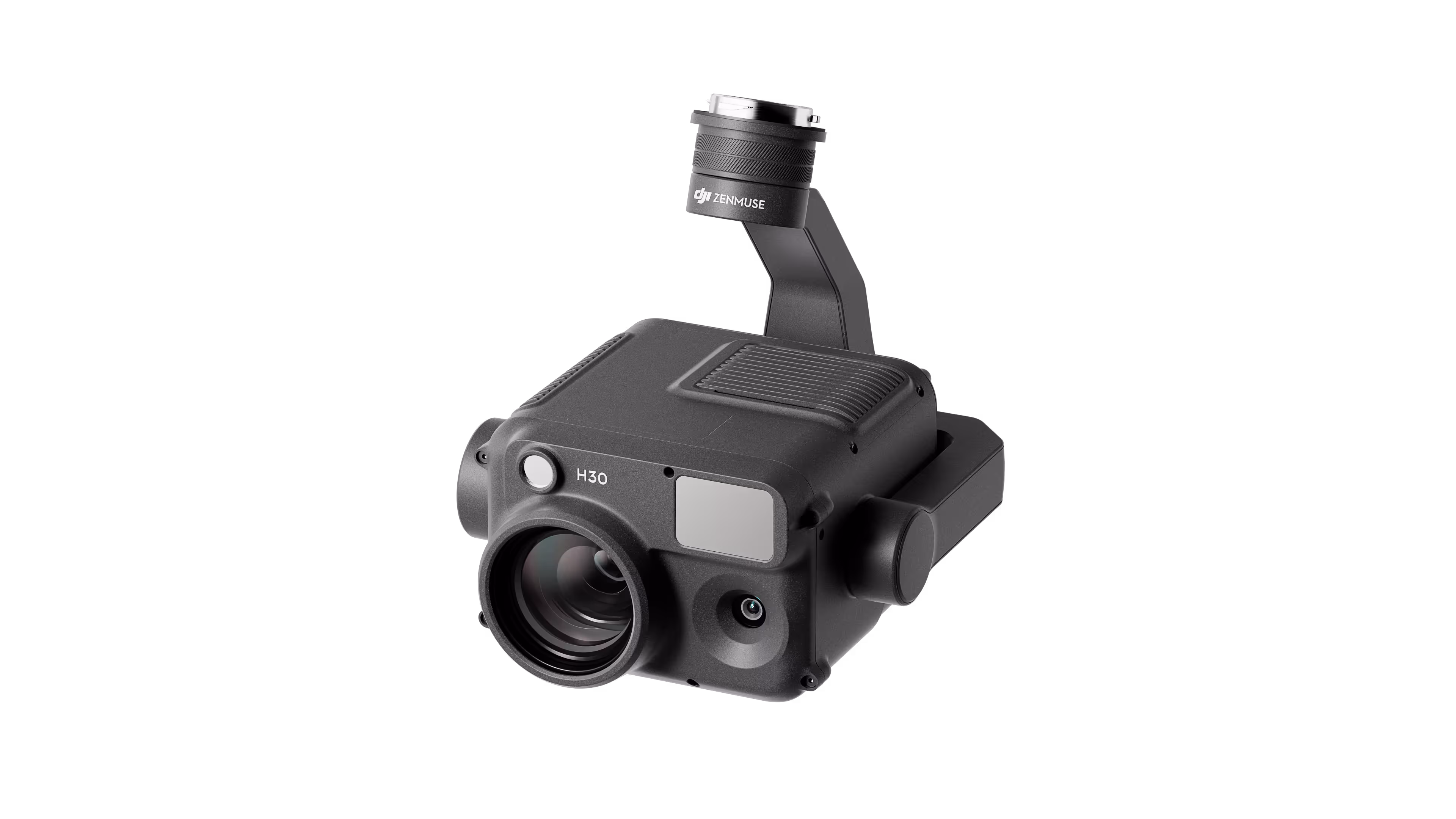

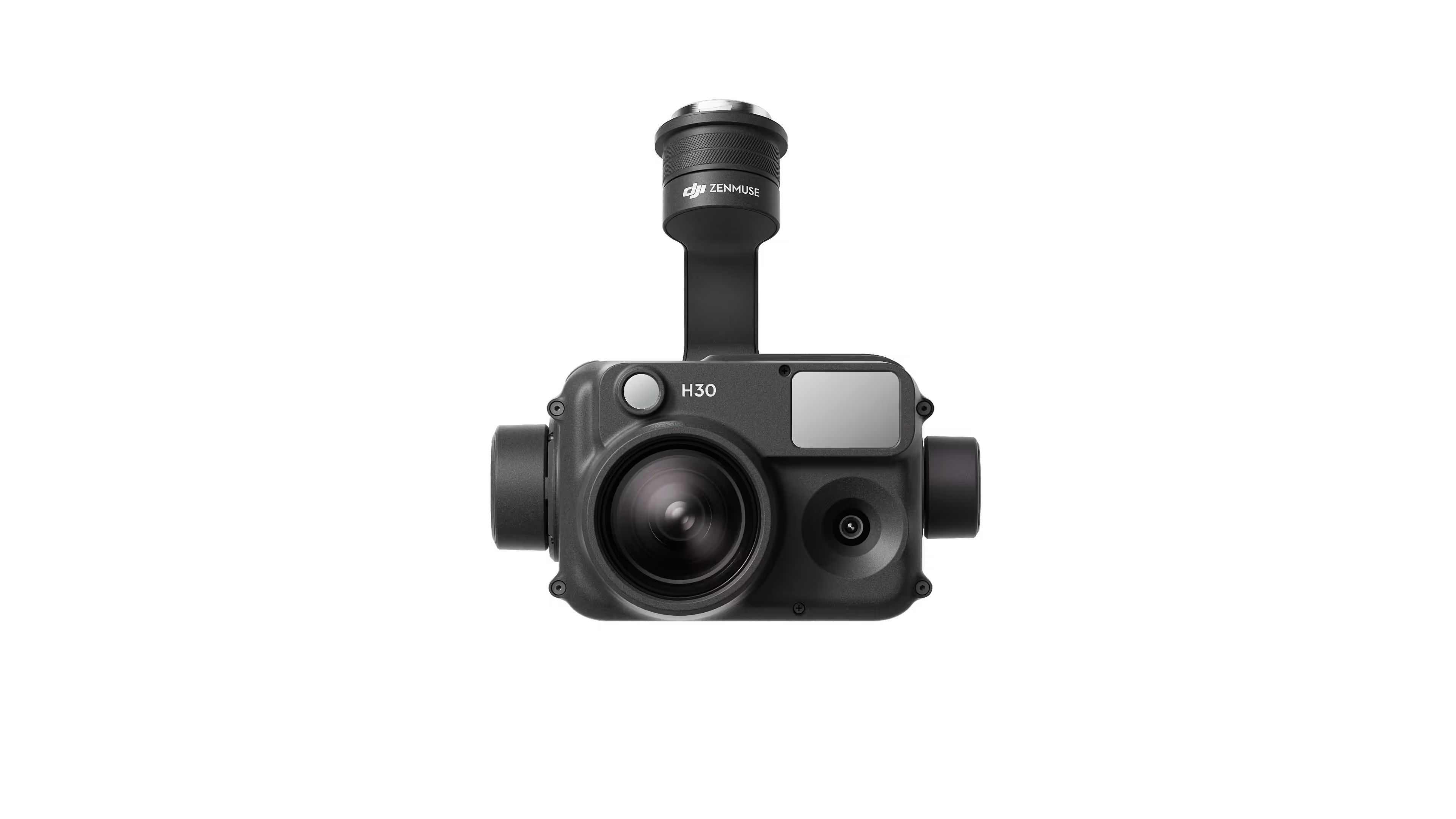

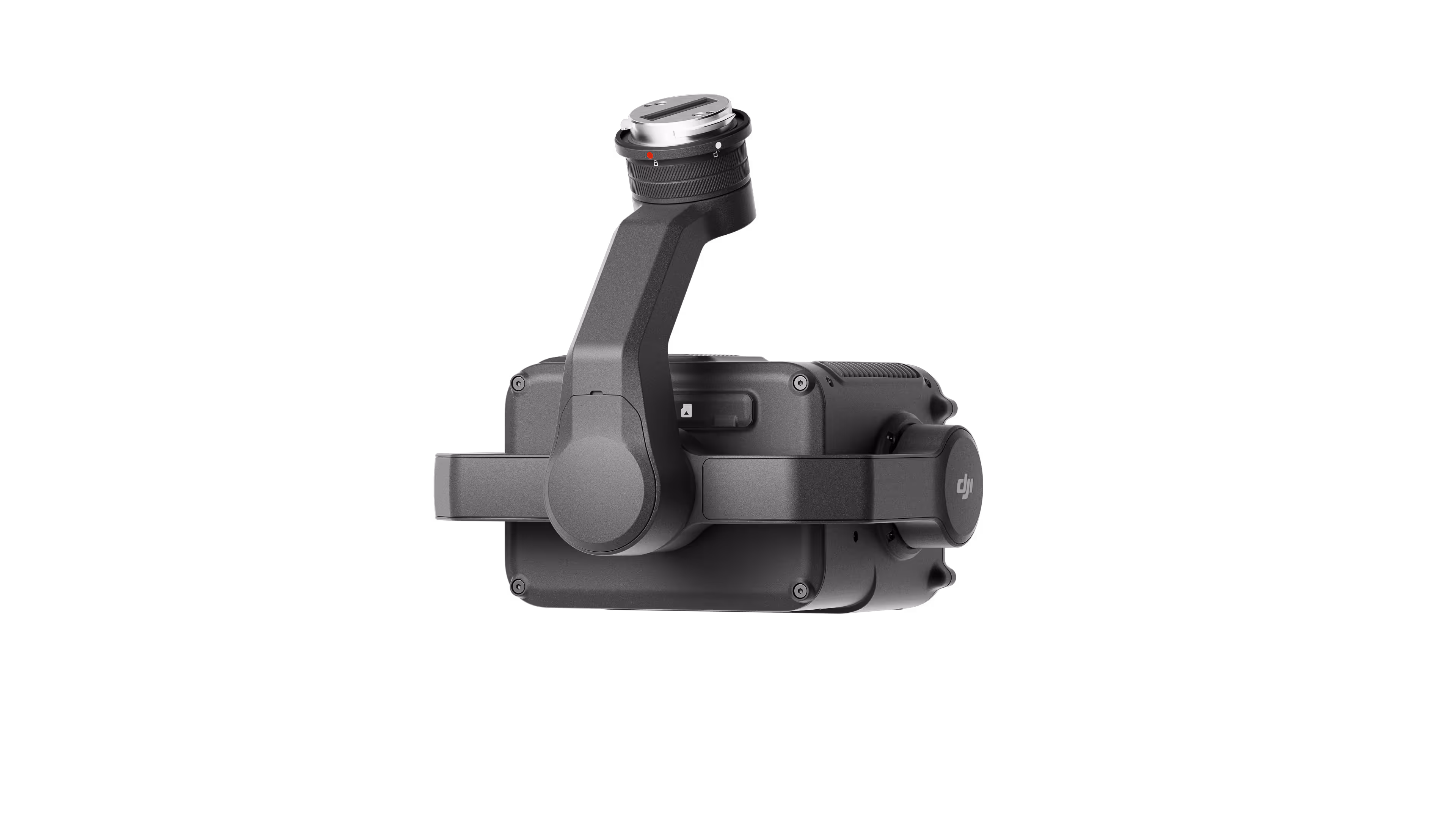

DJI Zenmuse H30

Overview

The DJI Zenmuse H30 equips operators with a variety of features that aim to secure mission success. Packed with powerful visual cameras, a 400x hybrid zoom, IR capabilities, a laser range finder, and more, this payload delivers unmatched performance. Operators benefit from enhanced image quality with Smart Captures, Electronic Dehazing, Enhanced Night Scene mode, and improved stabilization. A significant upgrade from the H20, the H30 sets a new standard for aerial imaging excellence.

‍

Key Highlights

• IP54 rating
• IR Sensing Capabilities: Take over night operations with the H30T’s IR sensor and built-in NIR Auxiliary Light (commonly referred to as IR Spotlight). This new feature enables pilots to see a new spectrum of imagery in light-deprived environments.
• Laser Range Finder: The H30’s LRF is can reach distances up to 2.5 times higher than the previous generation. By default, this sensor assists in focusing images in Night Scene Mode.
• 400x Hybrid Zoom

‍

Key Specifications

• Wide Camera:
  • 48 MP
  • 1/1.3 in CMOS sensor
  • Night Scene Mode
  • Resolution: 3840x2160@30fps (4K), 1080p@25fps in Night Scene Mode)
  • DFOV: 82.1°
• Zoom Camera:
  • 40 MP
  • 1/1.8 CMOS sensor
  • 34x optical zoom
  • 400x maximum zoom
  • Resolution: 3840x2160@30fps (4K), 1080p@25fps in Night Scene Mode
  • DFOV: 66.7°
• Laser Range Finder: 3m to 3,000m
• Weight: 920‡5g
• IP54
• Compatibility:
  • M300 RTK (only with DJI RC Plus)
  • M350 RTK
• Night Scene Mode:
  • Autonomously combines Enhanced Noise Reduction, IR sensors, and the NIR Auxiliary Light to achieve a clear, low-noise image.

Summary

The Zenmuse H30 stands out as an innovative solution for night and low-light operations, combining the power of precision imaging with advanced IR capabilities. Its powerful sensors, IP54 rating, and laser rangefinder make it the go-to choice for a wide range of applications, including inspection, mapping, and surveillance. With enhanced image stability, even at 400x zoom, the H30 is tailor-made for professionals seeking to enhance their operational effectiveness and efficiency in challenging conditions.

‍
